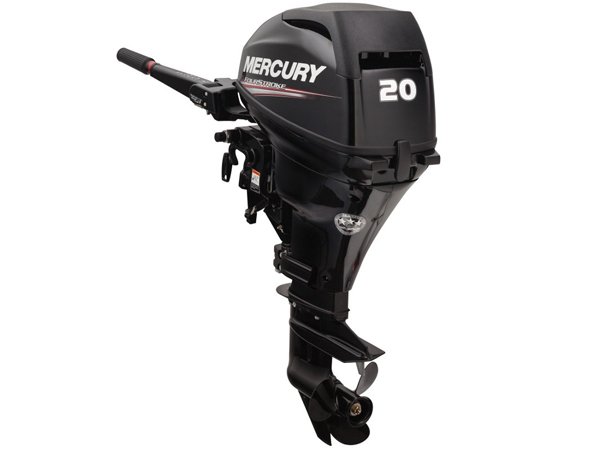

2017 Mercury 20 HP 20EH Outboard Motor
The Mercury portable 20 HP outboard motor develops powerful low end torque to plane your boat with ease. The 20 HP Mercury outboard engine intake mainifold design provides you the fast acceleration you need to move across the water quckly to your next destination. It is the perfect comgination of portable power for your boating needs.
The Mercury 20EH model is an electric start
outboard with a 15 inch shaft and includes manual tilt, a heavy-duty transom bracket, vibration-absorbing wishbone mounts, and a
multi-function tiller handle. Lengendary Mercury reliability,fuel economy and a 3 year warranty make this outboard the affordable pick.
2017 Mercury 20 HP 20EH Outboard Motor
- Large Displacement Powerhead (351cc)
- Electric Start + 12V 138W 12A Alternator
- Thru-Cowl Backup Manual Start
- Digital CD Ignition with Spark Advance
- Tuned Intake for Quick Acceleration
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes and Trim Tab
- Tiller Integrated F-N-R Gear Shifting
- Adjustable Steering Tension Control
- Twist-Grip Throttle with Tension Control
- Thermostat Controlled Water Cooling
- Auto Ratchet Tilt (6 manual trim positions)
- Shallow Water Drive
- Quiet Through-Propeller-Hub Exhaust
- “Wishbone” Mount for Reduced Vibration
- 6.6 Gallon Fuel Tank and Fuel Line
- Easy Maintenance Canister Oil Filter
- Start-In-Gear Protection
- Low Oil Pressure Warning Indicator
- ESG Over-Rev Protection
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 3-Year Warranty
2017 Mercury 20 HP 20EH Outboard Motor
| Model | 20EH |
| Model Year | 2017 |
| SKU | 20EH-17 |
| Weight | 121.0000 |
| Manufacturer | Mercury |
| Country of Manufacture | Japan |
| Horsepower | 20hp |
| Shaft Length | 15″ (Short) |
| Steering | Tiller |
| Starting | Electric |
| Trim & Tilt | Manual |
| Fuel Delivery | Carburetor |
| Fuel Tank | External |
| Cylinder(s) | 2 |
| Displacement | 351 cc (21.4 cubic inches) |
| Bore and Stroke | 61 x 60 mm (2.40 x 2.36 inches) |
| Full Throttle RPM Range | 5400-6100 |
| Ignition System | Digital CD Ignition w/Electronic Spark Advance |
| Induction Scavenging | SOHC |
| Valves per Cylinder | 2 |
| Fuel Type | 87 Octane (up to 10% ethanol content) |
| Fuel Tank / Fuel Line | 6.6 Gal. Fuel Tank + Quick Connect Fuel Line |
| Oil Type | SAE 10W-30 (Mercury 4-Stroke Outboard Oil) |
| Oil Capacity | 1 Quart (1000 ml) |
| Lubrication | Trochoid Pump |
| Alternator | 12V 138W 12A (standard on electric start models) |
| Cooling System | Water-Cooled, Thermostatically Controlled |
| Saltwater Rated | YES |
| Gear Ratio | 2.15:1 |
| Gear Shift | Forward-Neutral-Reverse (shift in tiller handle) |
| Propeller | 9.2″ Diameter X 9.8″ Pitch 3-Blade Aluminum |
| Internal Battery | No |
2017 Mercury 20 HP 20EH Outboard Motor
What’s in the box?
- Fuel Tank (6.6 gallon)
- Quick Connect Fuel Line
- Mercury 3-Year Warranty
- Aluminum Propeller
- Mercury 4-Stroke Oil
- Owner’s Manual & Tool Kit
